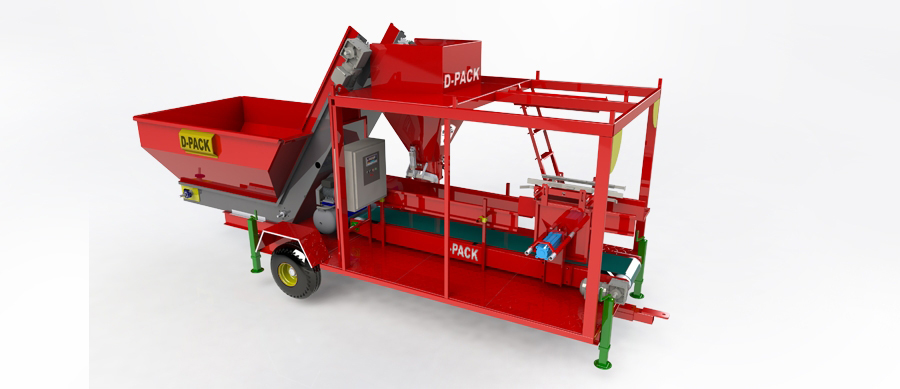

- 3 in 1 mobile concept (bunker + conveyor + packing unit) is economic and best solution.

- Entegrated Loading bunker with foldable wings gives oppurtunity for direct loading from trailers, trucks, loaders and doesnt

  require too muct effort.



-  Entegrated vertical conveyor band provides direct transfer of materials from the bunker to the intaker unit as synchronised

  working with motor drivers.



- Mobile main chasis with optimum dimension of complete set allows easy international freight in container for seaway.



- Accurate and Fast Weighing.



- Top weighing bunker allows regular flow of  materials to the bag



- Two step filling system for fast filling and exact/accurate scaling.



- Weighing and Filling Unit with movement sensor provides slowly and regular filling the materials and perceive the bags and

  move the bag holders,  save from time.



- Entegrated bottom band  provides smoothly, fast transfering and easy use.



- Strong press unit brings the packaged material’s smooth appearance, easy packing save from space.



- Strong air suction ability with vacuum unit, absorb the air inside the bag.



- Any kind of closing with : Hot sealing , sewing, clipping  up to user demand can be entegrated.



- All system is operated by the electronic control panel or automation PLC .



- Air Compressor supplies optimum air amount for all related units.



- Mechanical Lift Jack prevents any damage by stablizing the machine.



- Roof structure design gives oppurtunity for indoor/ outdoor working under rain or under sun.



- Remote Connection for technical support.

Capacity	13-15 Ton/h	Required Power	380 V - 50hz - 3p
Filling Range	25-50 Kg/bag	Entegrated Bottom Band	300 cm
Power Consumption	20 Kw/h	Chasis Dimension	820x220 cm
Filling Bunker Diameter	Ø28 - Ø32 cm	Bunker Dimension	250x260 cm
Double Axle with Tyres	Standart	Working Height	320 cm
Stablizer and Drawbar	Standart	Transport Height	250 cm
