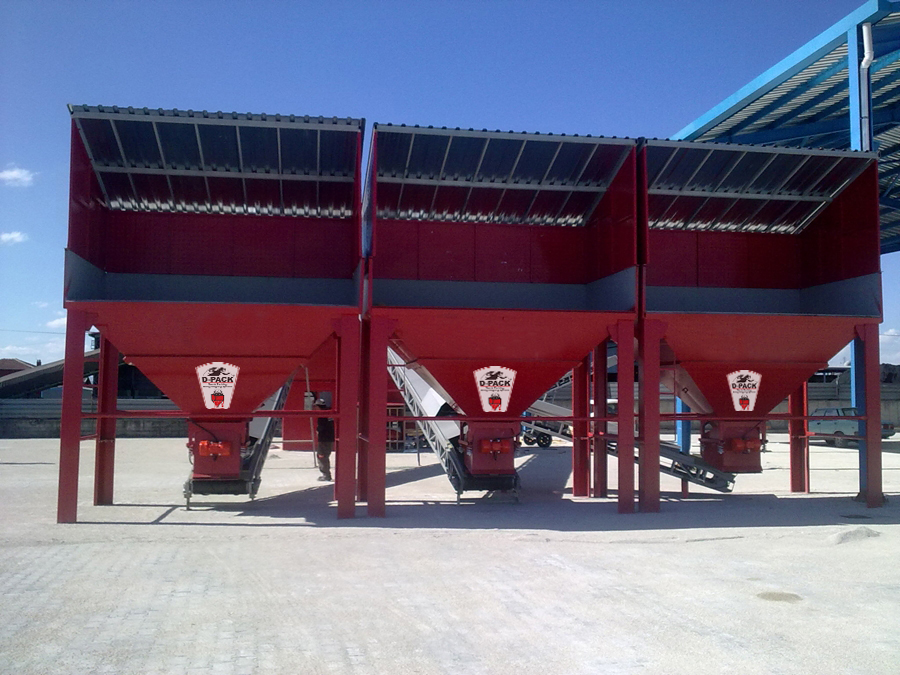

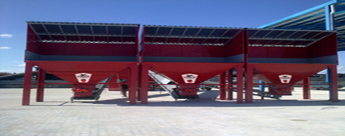

- Vibromotor provides to adjust the fludity and transfer of coal to bunker.
- Feeding Bunker gives oppurtunity for collecting and loading to weighing unit

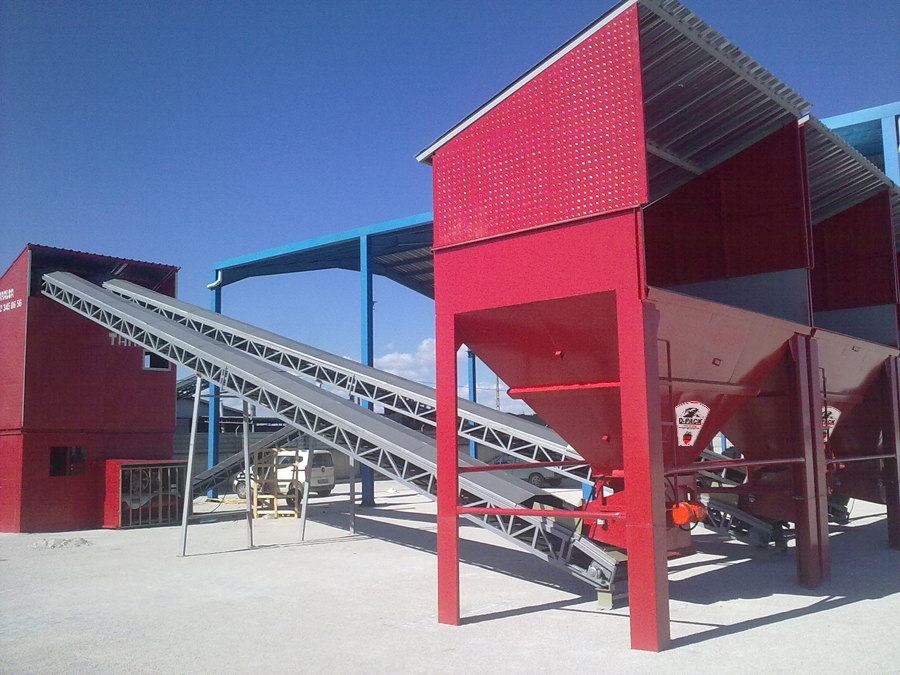

- Coal Transfer Band provides direct transfer of coals from the bunker to the intaker unit as synchronised working with motor
drivers.
- Top weighing bunker allows regular flow of materials to the bag

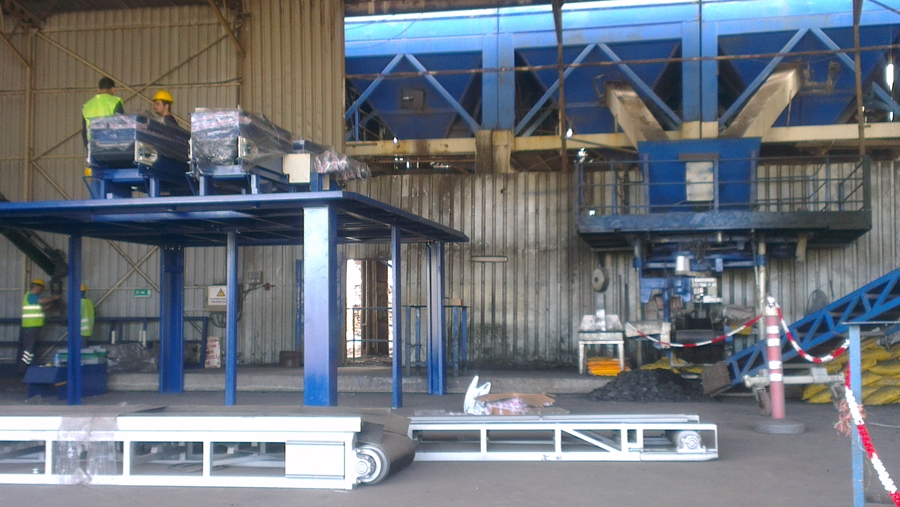

- Weighing and Filling Unit provides slowly and regular filling the materials.
- Bag Holders with movement sensor perceive the bags and move the bag holders, save from time.
- Bottom Transfer Band provides smoothly, fast transfering and easy use.
- Sewing Machine (Mobil and Automatic)
- Transport Conveyor Band Entegrated bottom band provides smoothly, fast transfering and easy use.
- All system is operated by the automation control panel PLC .
- Coal Dust Band
- Air Compressor supplies optimum air amount for all related units.
- Remote Connection for technical support.
Capacity | 6-10-20-40 Ton/h | Required Power | 380 V - 50hz - 3p |
Filling Range | 25 Kg/bag | Entegrated Bottom Band | 300 cm |
Power Consumption | 20 Kw/h | Chasis Dimension | 820x220 cm |
Filling Bunker Diameter | Ø28 - Ø32 cm | Bunker Dimension | 250x260 cm |
Double Axle with Tyres | Standart | Working Height | 320 cm |
Stablizer and Drawbar | Standart | Transport Height | 250 cm |
